arm_bae v2: new version and OMV setup

05 Jun 2026
computer diy hardware homelab shenanigans

It’s finally the time to revisit and complete my arm_bae project, the one based on putting an ARM SBC inside the PC case, effectively making two computers out of a single one. I said at the end of the last blog post, that…

…in a month or two there will be a second blog post (and video) on the software setup…

Well, I lied… The reality struck, life got in the way, the things have escalated and all those excuses. But…

After all that wait, the arm_bae is up and running!

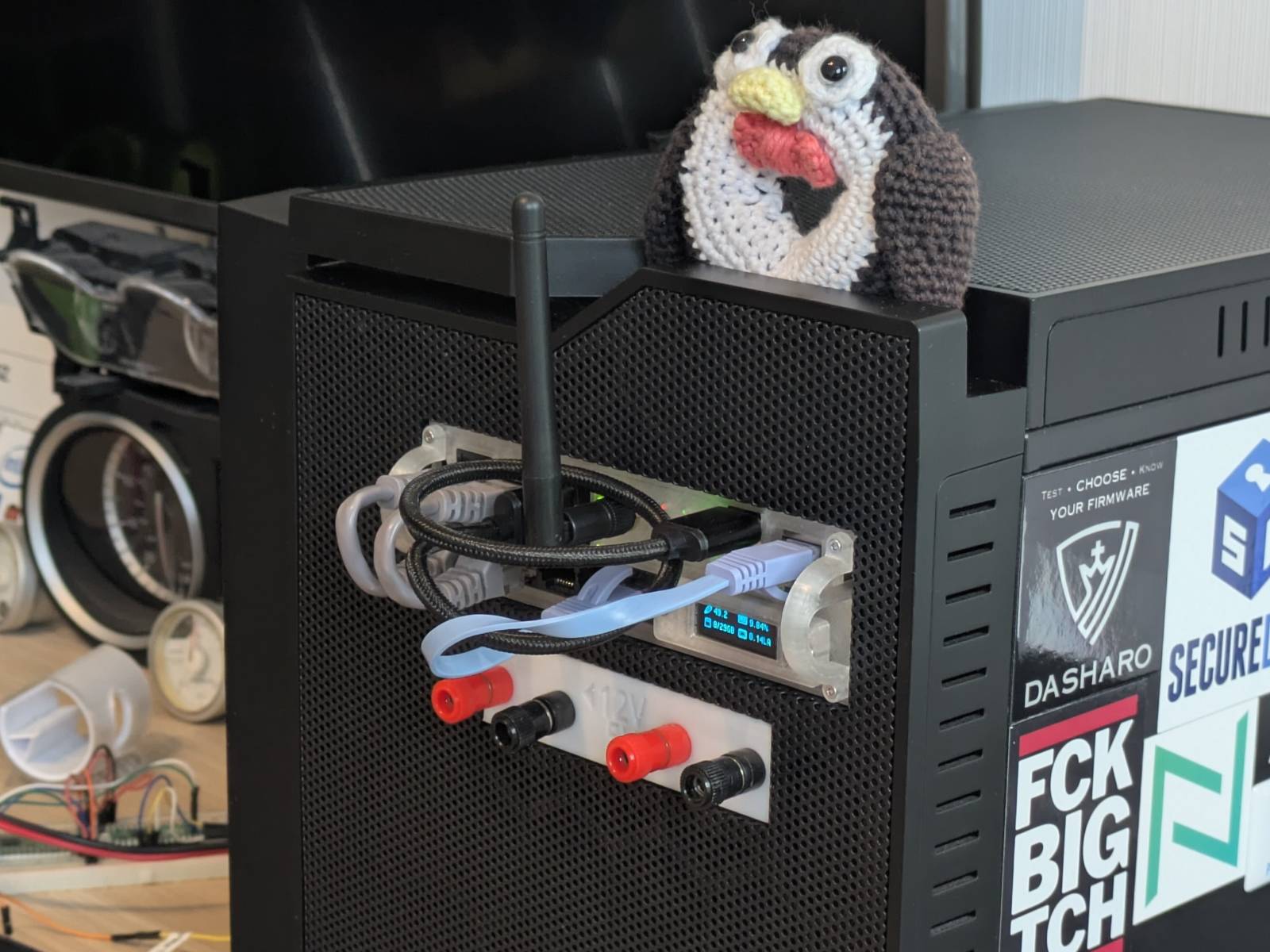

bae_v2

In this post I will cover two major topics:

  • why arm_bae v2 has been created,
  • and what I am running on it.

If you’re new here (or you just missed it), please read the part I for the full context. Here I will only cover what has changed.

Oh my Pi

The main reason the project took so long to complete was my initial choice of the platform. The Orange Pi 4a I planned on using turned out to have (let’s say) mixed support in the upstream.

I admit, I was too full of myself thinking I could take the current Armbian image the community has come up with, investigate Orange Pi sources, and add missing stuff by myself. I tried, and made some progress. For example, I did get the emmc memory to at least be detected by the system and that was really it. I spent like two weeks of evenings trying to make sense of the whole DTS situation, comparing Armbian and Orange Pi sources, and once I finally got a view of it, I realized…

I know s**t about (networking) drivers.

I also had this naive vision that fixing definitions in the Devicetree is magically most of what it takes to make it work.

Well, no, not at all.

…and in such a way, the project has been put on the back burner. Oddly enough, what motivated me to get back to it was my (then) boss making a purchase of a server for which the case alone was worth more than all the computers in my possession combined. I somehow felt pathetic that people are stacking proper servers in their homes and I can’t finish a sub $100 “server” build.

God’s second lonely programmer

Before we move on to what has changed in arm_bae v2, let me quickly share the upstream status for the Orange Pi 4a.

The Armbian image for OPI 4a can be built from the Armbian buildsystem; it boots an up-to-date upstream kernel (it was 6.18 I believe the last time I tried it). What was not working since I tried it was the networking stack and the emmc memory. The ethernet node device would appear but would not be usable, and the emmc would not appear at all. What should be noted is that there are no proprietary drivers used in the Armbian system, only upstream support, and that was frankly the main source of the headache I had while comparing the sources.

The real MVP here is Chen-Yu Tsai who (if I am not mistaken) singlehandedly adds support for this board to upstream as a part of the linux-sunxi initiative. A part of this is adding support to open-source drivers for handling stuff like networking. I can’t even imagine how huge of a task this is, and what experience one must have to pull this off. Massive respect.

arm_bae v2

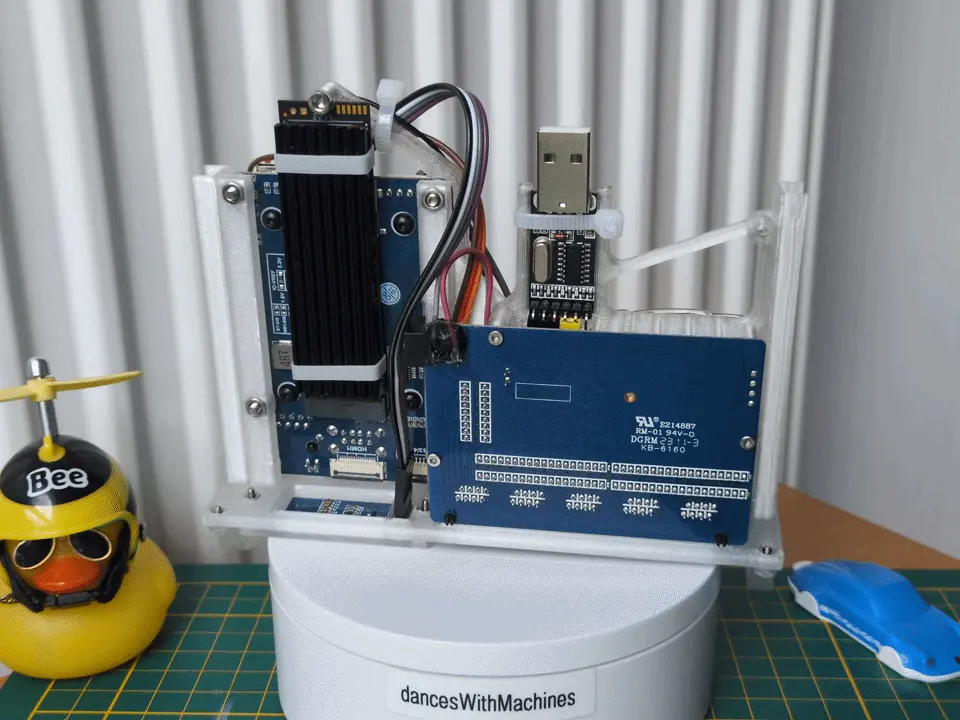

I won’t be keeping you in suspense, here’s the arm_bae v2 in all its glory.

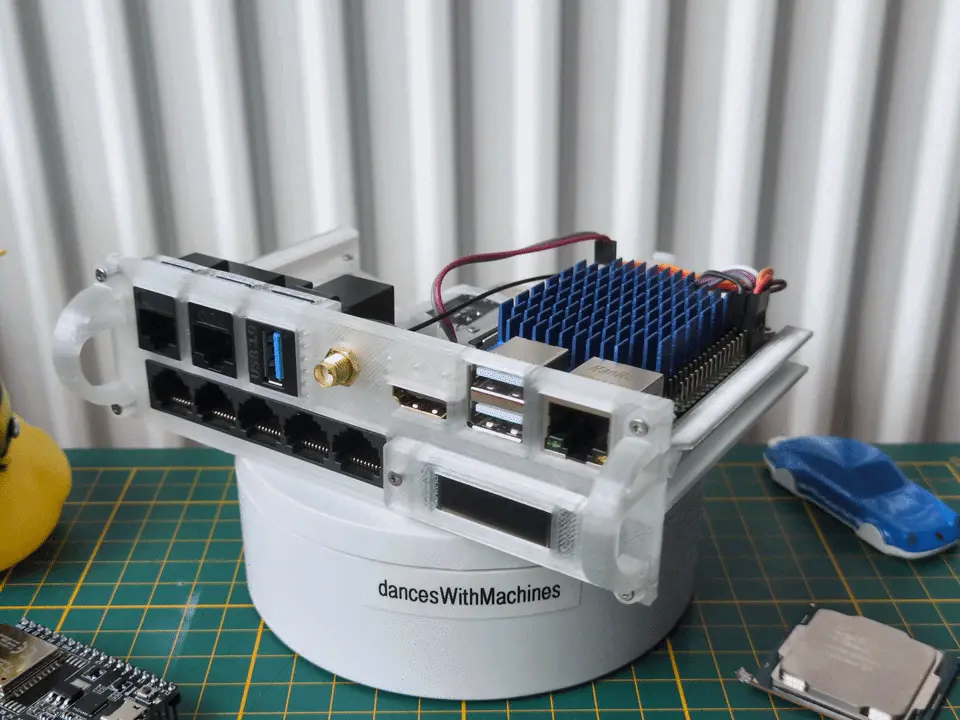

bae_spinning_hor bae_spinning_ver

The updated model can be found on Thingiverse for free.

A new SBC

Probably the biggest change is a change of the SBC. I’ve dropped the support for the OPI 4A and instead the arm_bae v2 houses the Raspberry Pi Compute Module 4 on a Waveshare CM4-IO-BASE-A carrier board.

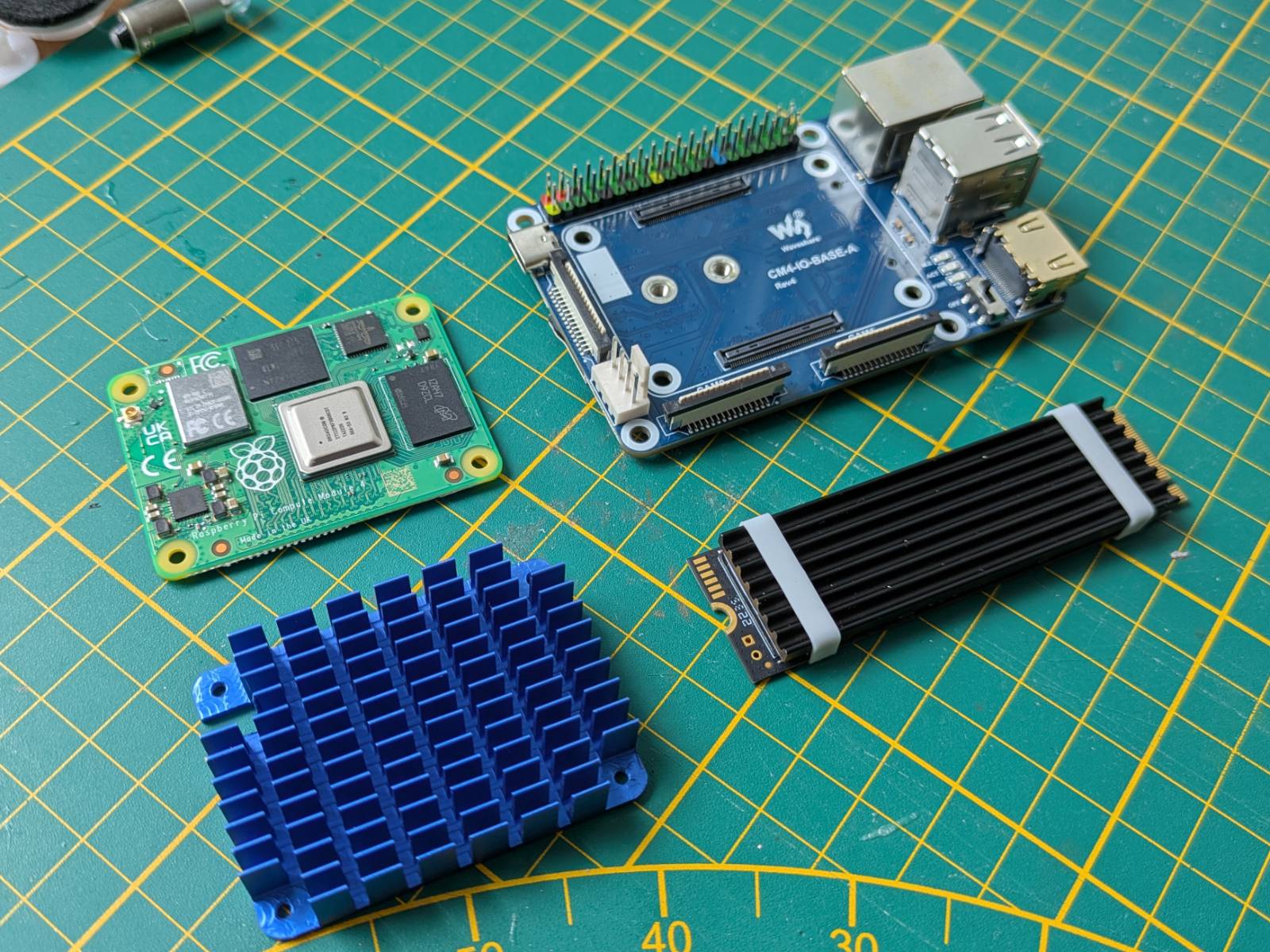

pieces

Why CM4? For two reasons:

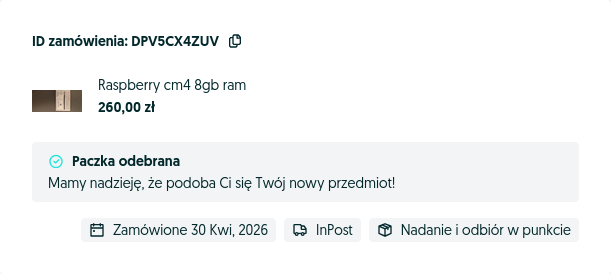

  1. I managed to snag the beefiest version (built-in wifi, 32GB emmc storage, 8GB of ram) brand new for a steal of 260zł ($71 in today’s money) + 21zł for shipping. (And let me remind you, we’re in the middle of a ram crisis.)

    olx

  2. It fulfills all the requirements I had for the OPI, that are:

    • emmc for reliable storage
    • nvme drive support (CM4 has a single lane of PCI, the regular RPI 4 doesn’t)

    …plus, the Raspberry Pis have excellent support in upstream, so I don’t have to mess with the OS itself as I would need with the Orange Pi. It’s as plug and play as it gets, and honestly it is the route I should have taken in the first place.

More features

I did remodel the project almost from the ground up (I will talk about why in the next section), and addressed the main two things I didn’t like in V1. These were:

  • Front (button) panel - since the carrier board does not have any physical buttons or a header to connect them, I replaced the front panel with the 0.91” OLED screen for displaying momentary device stats.
  • No external antenna - I’ve added a hole for mounting an external antenna and shifted switch status lights further to the left. I have to admit though, with the one I have it looks kinda like a unicorn :D

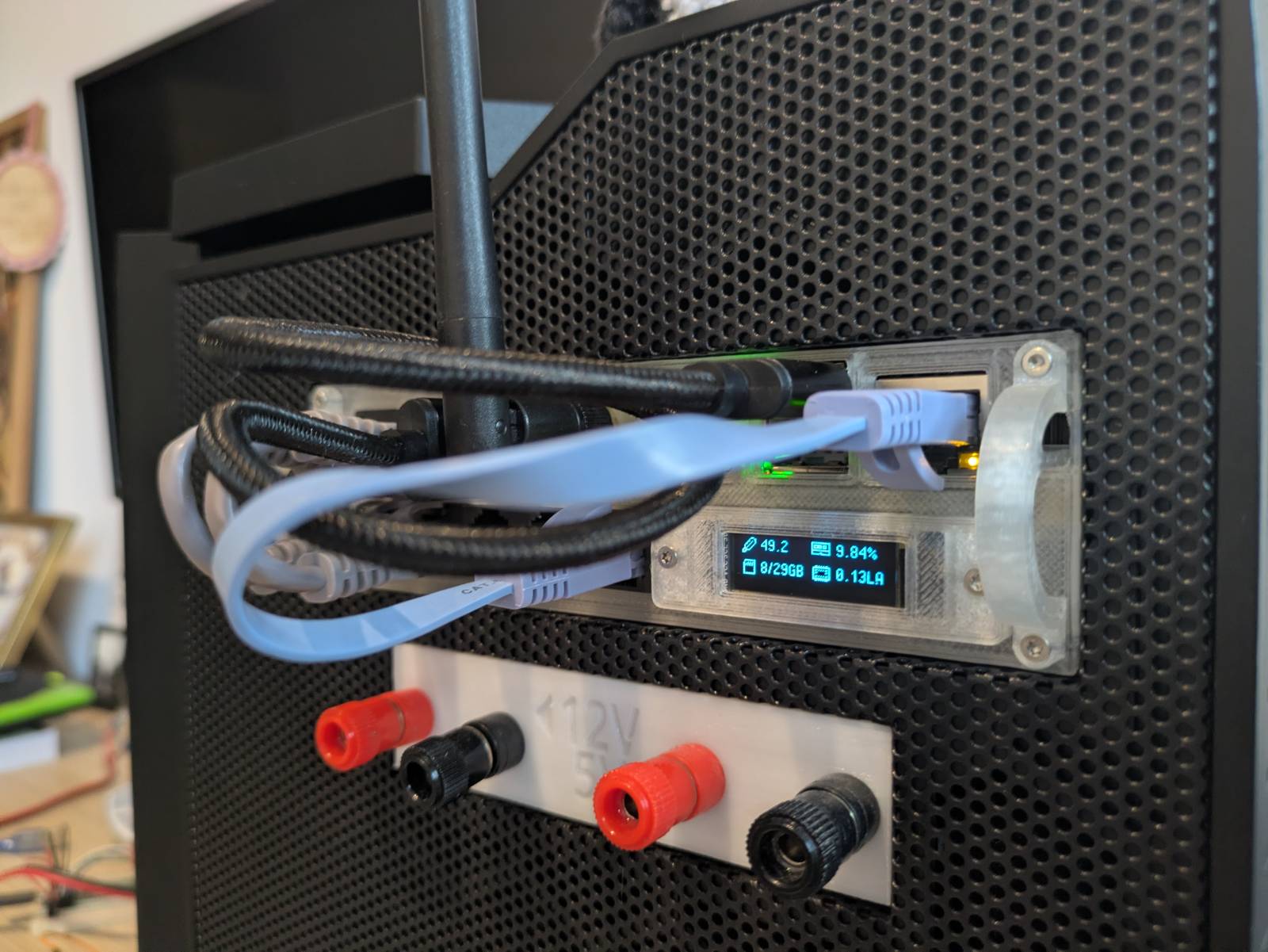

screen

Yup, I need shorter cables, I know…

But wait, there’s more

Other than fulfilling my internal urge of making the things I do be at least “OK” (non-cursed, non-perfect) I did the remodelling for one more reason.

In parametric modeling you have to keep in mind two things: order and mutability. Any change to earlier layers also recalculates the upper layers, and if you are not planning things well, a change to the parameters might un-fixably break some portion of the top layers, and you have to remodel them again. That was the exact issue with the v1 model. I did the handles last, so as I was making improvements I had to remodel them at least a few times. It also didn’t help that I had reference chains, that not only made recomputing slower (FreeCAD still calculates everything on a single core) but would also lead to dependency related issues.

In v2 I fixed these issues. First, I made rails, handles and body unrelated objects (meaning they share dimensions, but are not dependent on each other). This reduced computing times and gave me fewer dependency errors. The second thing I did was reorder the assembly. I did model the holes for the handles on the main body first, and that single change allowed me to export templates/blanks.

screen

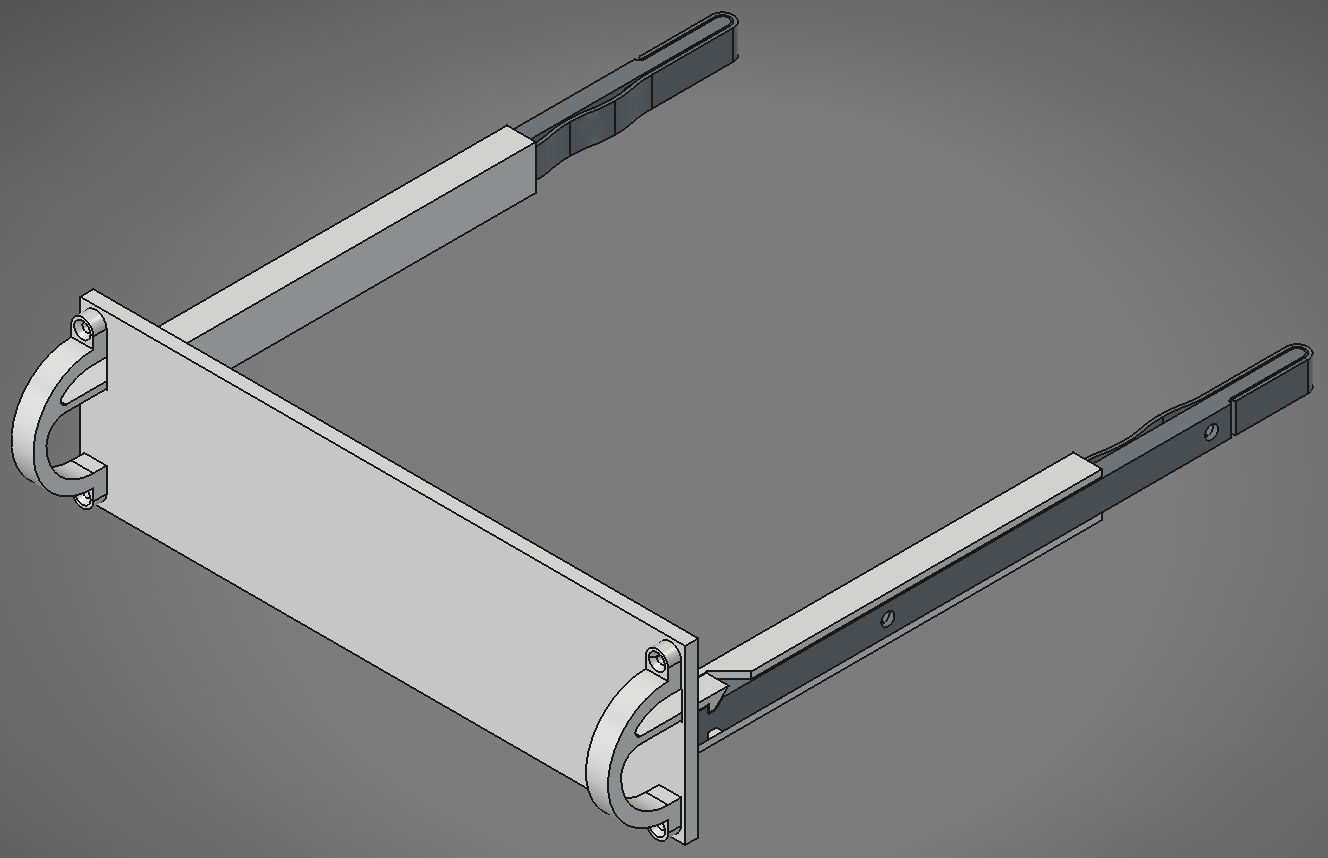

I know that my choice of SBC is quite unpopular, therefore, I’ve also shared templates on Thingiverse for the people who want to remix the project for their SBC of choice. If this project ever grew I would love to host a repo on GitHub with configurations of arm_bae for various SBCs and switches. Sadly, while there is interest, I think the times of cases with 5.25” bays are gone and I’m filling the niche by myself.

Connections and hardware

A quick recap from the part I…

The arm_bae connects to the PC case backplate internally. All the ports, except the UART adapter, live on the pci slot cover to keystone adapter. The UART adapter is connected directly to the USB 2.0 header on the motherboard.

PCI bracket external

Since I’ve updated the SBC I also had to introduce a minor change in the connections. The picture below shows the diagram from the part I, updated to reflect the current state.

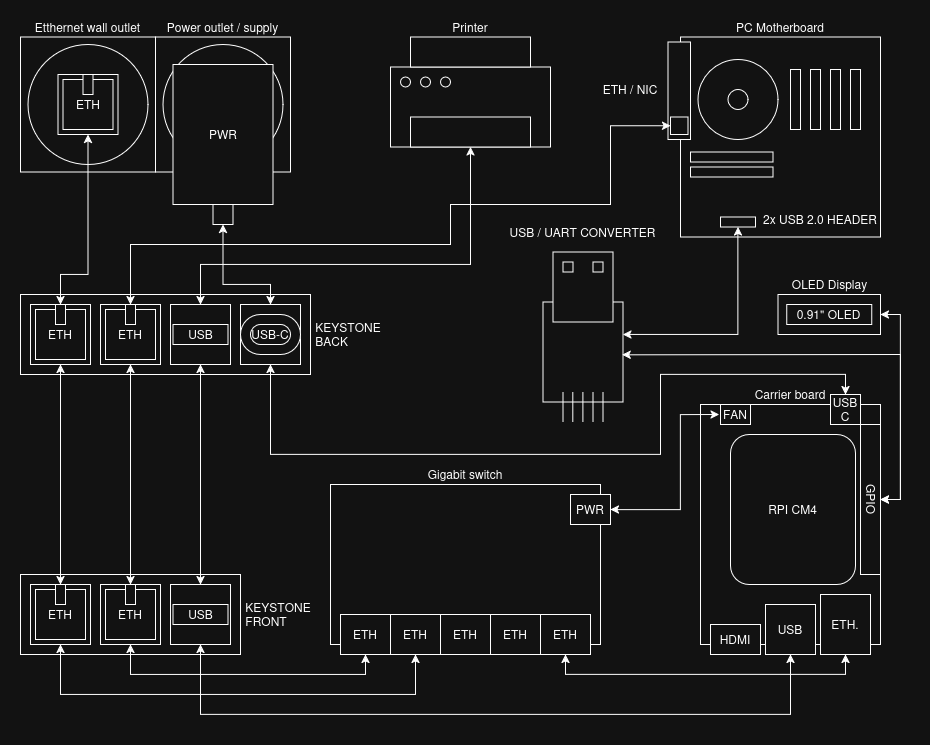

diagram

The 3 notable changes are:

  • The ethernet switch is now getting power from the fan header on the carrier board (it is connected directly to the 5v rail).
  • Both the OLED screen and USB-UART converter attach to the GPIO on the carrier board.
  • The USB port to the printer is now wired in externally as there is no internal USB header on the carrier board, which was present on the OPI 4a.

Parts list

Here’s an updated parts list if you wanted to assemble this yourself.

Notes:

  • This list does not include obvious items like filament for printing the case or wires.
  • Items marked as “(exact listing)” indicate the specific listing I bought them from. You don’t need to buy from these listings, and none of the links are affiliate links.

SBC stuff:

Other electronic pieces:

Cables, antennas, and adapters (note the length may vary in your case):

Nuts and bolts:

Misc:

What’s on my NAS?

The title is intended reference to “What’s on my X” videos. Cringe, I know…

Allright, now that the hardware part is finally complete, it’s time to talk a bit about the configuration. Before I begin, let me talk a little bit about my approach.

I am a fan of simplicity, minimalism and “deploy and forget” approach. The less stuff to maintain the better. My “server”, “NAS” or whatever, is as bare bone as it gets, some examples:

  • I don’t need to deploy a full Google-like suite in the form of Nextcloud,
  • I don’t need my garbage photos I take to be synced up automatically, nor do I need to browse them in the browser.
  • I don’t need Jellyfin as I don’t have collection of movies and like every other regular Joe, I use streaming services for that (I don’t claim that is good, but it’s convenient).

I can replace all of the above simply by connecting my computer to a share, and use desktop native apps. That said, I am not a complete nomad and there are services I do find useful, convenient or that simply need to be hosted somewhere, and I will talk about those.

OS

My OS of choice is the one and only (not much else is there for ARM I believe) openmediavault 8 running on top of regular Raspberry Pi OS Lite.

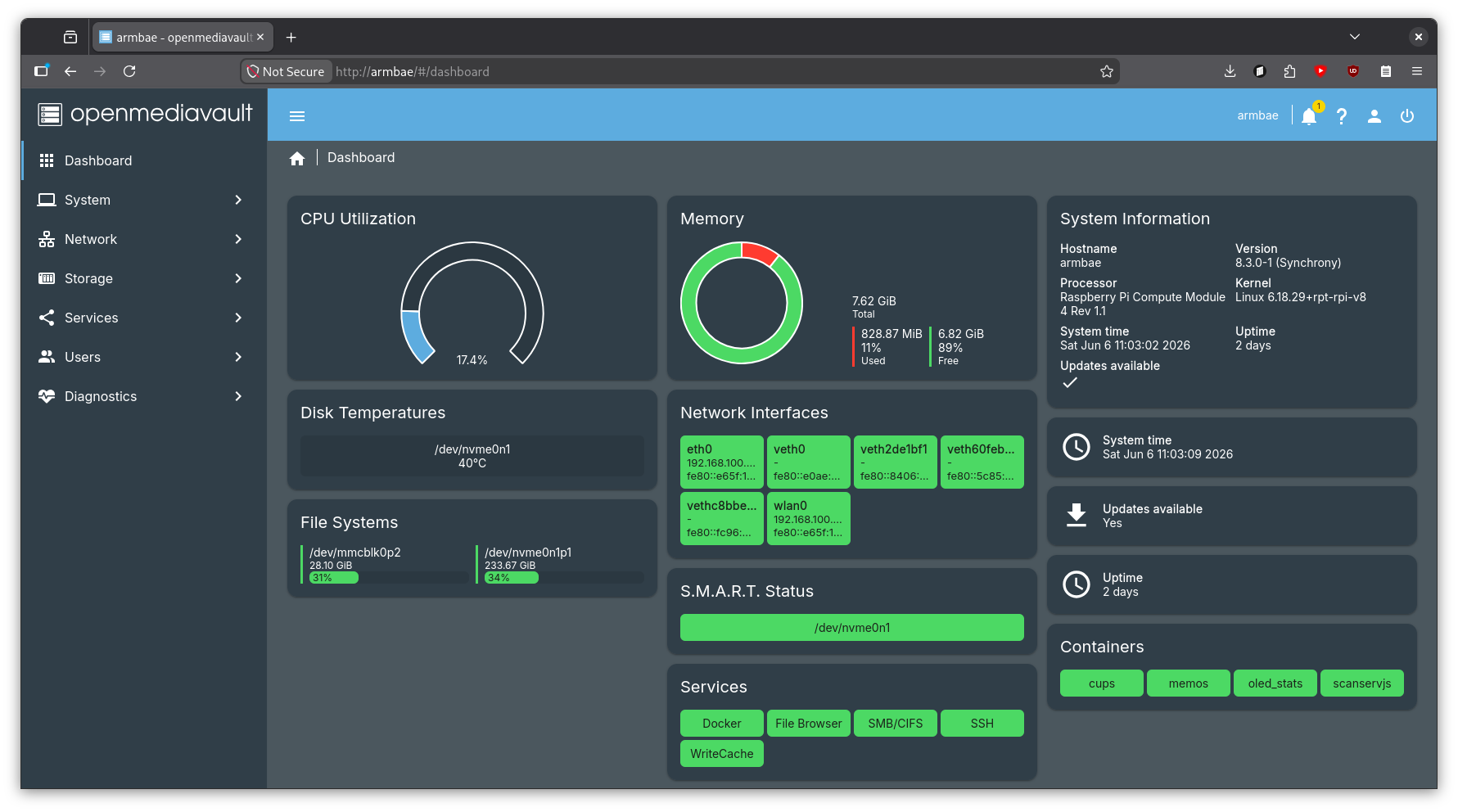

omv_dash

The OMV is my favorite type of solution, which is the “it just works” solution. It does all you would need a NAS OS to do, like:

  • Disk/filesystem management
  • Access management
  • File shares
  • Sync jobs
  • Running docker containers
  • Management from web-ui

It’s fast to pick up and (at least to me) logical once you spend some time with it. Additionally, I have the following extensions pre-installed (these require omv-extras installation):

  • openmediavault-compose - Used for docker automation
  • openmediavault-writecache - Reduces writes to the OS filesystem to extend the life of the storage device
  • openmediavault-wol - Allows waking up hosts via WOL (I’ll talk about that later)
  • openmediavault-filebrowser - “Google-drive like” service for browsing files in the browser.
  • openmediavault-scripts - For managing python and bash scripts.

The downside of the OMV I see however is it being web-ui centric. This does not really align with my recent “home-infrastructure-as-code” approach, mixed with “ansible-everything” recent mania. The approach I landed on is:

  • Manual OMV installation
  • Configuring base Debian stuff via ansible (Shell, installing packages, deploying /etc/hosts, etc.)
  • Installing all OMV services via ansible,
  • Preserving the configuration files (mostly docker and docker-compose-files) in the ansible repo,
  • Performing configuration manually from the web-ui, pasting configurations.

It ain’t perfect (not configuring OMV itself automatically), but the OMV is so easy to manage, I am confident I could pull all of that in less than an hour, so it doesn’t bother me much.

Storage

For the share storage I am using a 250GB NVME drive I had lying around. Yup, it ain’t much and to be honest it is not even enough for me to copy over the main share I am running on the 1TB RAID 1 array (of HDD drives) on the cube (the main x86 host, the case belongs to). The thing is, even the “good-value” NVME drives are almost twice the price of the whole freaking server, and I ain’t paying this much. Until the prices stabilize, my solution was simply to not copy over the share in its entirety. I had to leave my collection of ripped CDs (~170GB) and Windows VM image (~40GB) on the RAID array on cube. I will elaborate on this more in the upcoming sections.

Built-in services and setup

Let’s start discussing the configuration from the built-in services and functionality, including the ones installed as a part of omv-extras.

Share and backup

To “share the share” across the network I use SMB. This allows me to connect to it from all kinds of devices. The setup is just as easy as ticking a few checkboxes and off it goes, nothing to write home about.

The more interesting is the backup automation. I basically copied over my wol + rsync setup, but more cleanly this time. This is what I’ve done:

  1. I’ve used the WOL extension to add the cube to known devices. (This has a side effect that I can turn it on even if I’m outside the home. Neat.)
  2. Then I’ve configured an rsync job in web-ui but left it disabled. (The rsync flow does not support waking up the target via WOL.)
  3. Then I created a bash script in web-ui (this is what the scripts extension was for) that will:
    • read the WOL configuration, wake up the target, and wait 2 minutes for it to boot.
    • execute the rsync script that was created in step 2.
    • shut down the target if rsync has succeeded.
  4. …and finally, set up a cron job that will fire this script at the beginning of every month to back up the arm_bae drive to the RAID 1 array on the cube.

That RAID 1 probably doesn’t make much sense at all since it does not really have to be “online”, but at the same time it does not hurt anything I believe. I must think of a 3rd place for backup though.

File Browser

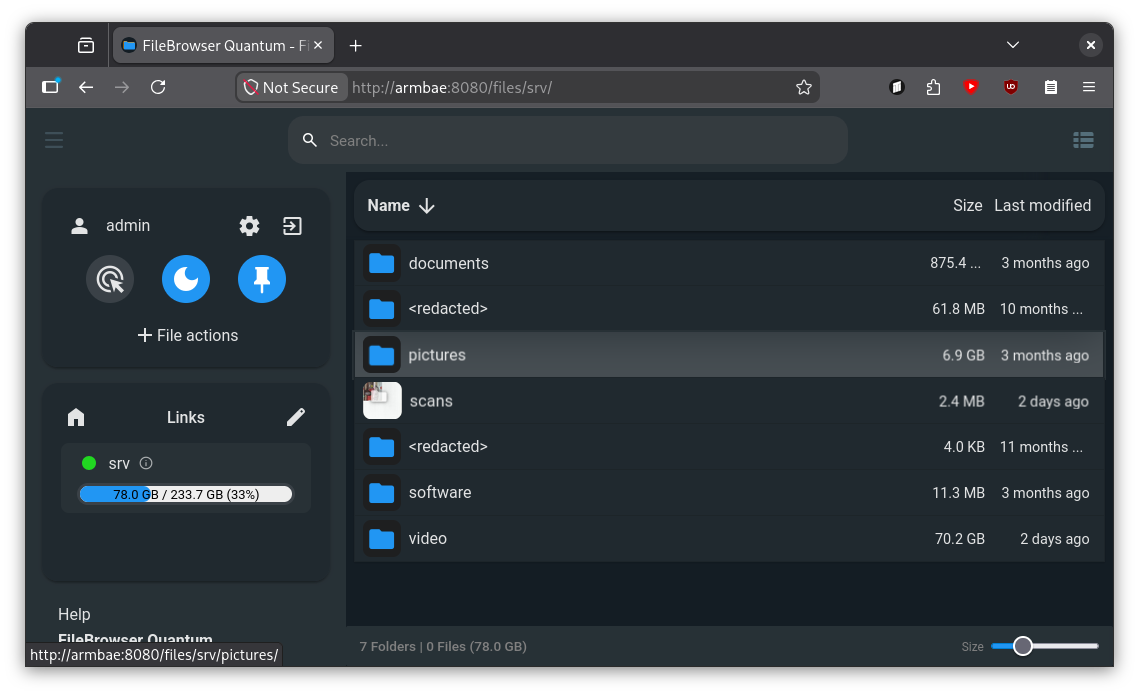

File Browser is a lightweight file explorer in your browser. The easiest thing to compare it to would be a web-based Google Drive.

Filebrowser

I find File Browser useful on mobile devices, as I do not have to install any 3rd party client apps that would connect to my share. Tailscale (more on that later) makes connecting to such a service from the phone a breeze. I simply open up Firefox, click a shortcut to the File Browser, log in and I am already in my “privately hosted Google Drive” with space limited only by the capacity of the drive I have. No subscriptions and no storing my data god knows where.

Take that Google…

Again, File Browser is an official OMV extension and configuring it is literally 3 clicks.

Other services

Let’s now discuss services that I configured, that are not part of the OMV functionality.

Tailscale

Tailscale is my VPN solution of choice and it is the only one of the services that are in this section that is installed directly on the host, rather than in a docker container.

Why Tailscale? Because it is freaking good. It’s stupid easy to set up, works on everything, the interface is great, has features like static DNS names even in the free tier, and it “just works”. My anecdote for Tailscale is when I was setting up a VPN for the first time I thought I’d spend days setting it up. In reality, half an hour and I was completely done. For the stupid SMB share you have to have a PHD in “Patience and Administration” and a few evenings of free time (if you’re playing with the conf file manually) and the freaking VPN was child’s play compared to this.

Tailscale is what makes accessing everything possible, starting at the SMB share, to File Browser and ending up at all the other services I’ll discuss later. I can connect to the arm_bae wherever I am, from both my laptop and a phone.

Still, while being based on open-software, Tailscale is a corporation, you’re giving partial access to your devices, and it is a valid concern if you’re against it. My take on this is, if I really want to keep it “budget”, there is no way I won’t be using any 3rd party service along the way, so it is a necessary evil I have to accept. If I were to “rent” a VM somewhere, it would still run on someone else’s infrastructure, I don’t see an escape from it sadly.

OLED stats docker service

Now onto the docker services, let’s start from the stats first. This container is simply for displaying the stats (RAM usage, CPU usage, CPU temp and root partition usage) on the OLED screen. It is based on the OLED Stats project with some hackery added on top of it. The issue with it is that it has that “I put it as a concept in my spare time” quality to it, so:

  • it requires a bunch of obscure libraries pulled in,
  • you have to edit the source code to accept smaller screens (my 0.91”),
  • and finally, instead of setting up a service, the manual says to set up a cron job that calls the python script on every boot (I consider this a crime).

My solution to this is simply to pull the container, do some inline sed dance to the script, and run the script inside of the container.

---
services:
  oled_stats:
    build: https://github.com/mklements/OLED_Stats.git#main
    container_name: oled_stats
    restart: unless-stopped
    privileged: true
    devices:
      - /dev/i2c-1:/dev/i2c-1
      - /dev/gpiomem:/dev/gpiomem
    environment:
      - TZ=Europe/Warsaw
      - OLED_ROTATION=1
    entrypoint: ["/bin/sh", "-c"]
    # There are 4 files to choose from: stats.py | status.py | monitor.py | psutilstats.py
    # We use monitor.py and adapt it for a 2-row 128x32 panel:
    # * sed screen height 64 -> 32
    # * raise the rows: "top + 5" -> "top", "top + 25" -> "top + 20"
    command:
      - |
        sed -i 's/HEIGHT = 64/HEIGHT = 32/' *.py
        sed -i 's/top + 5/top/g' monitor.py
        sed -i 's/top + 25/top + 20/g' monitor.py
        exec python monitor.py

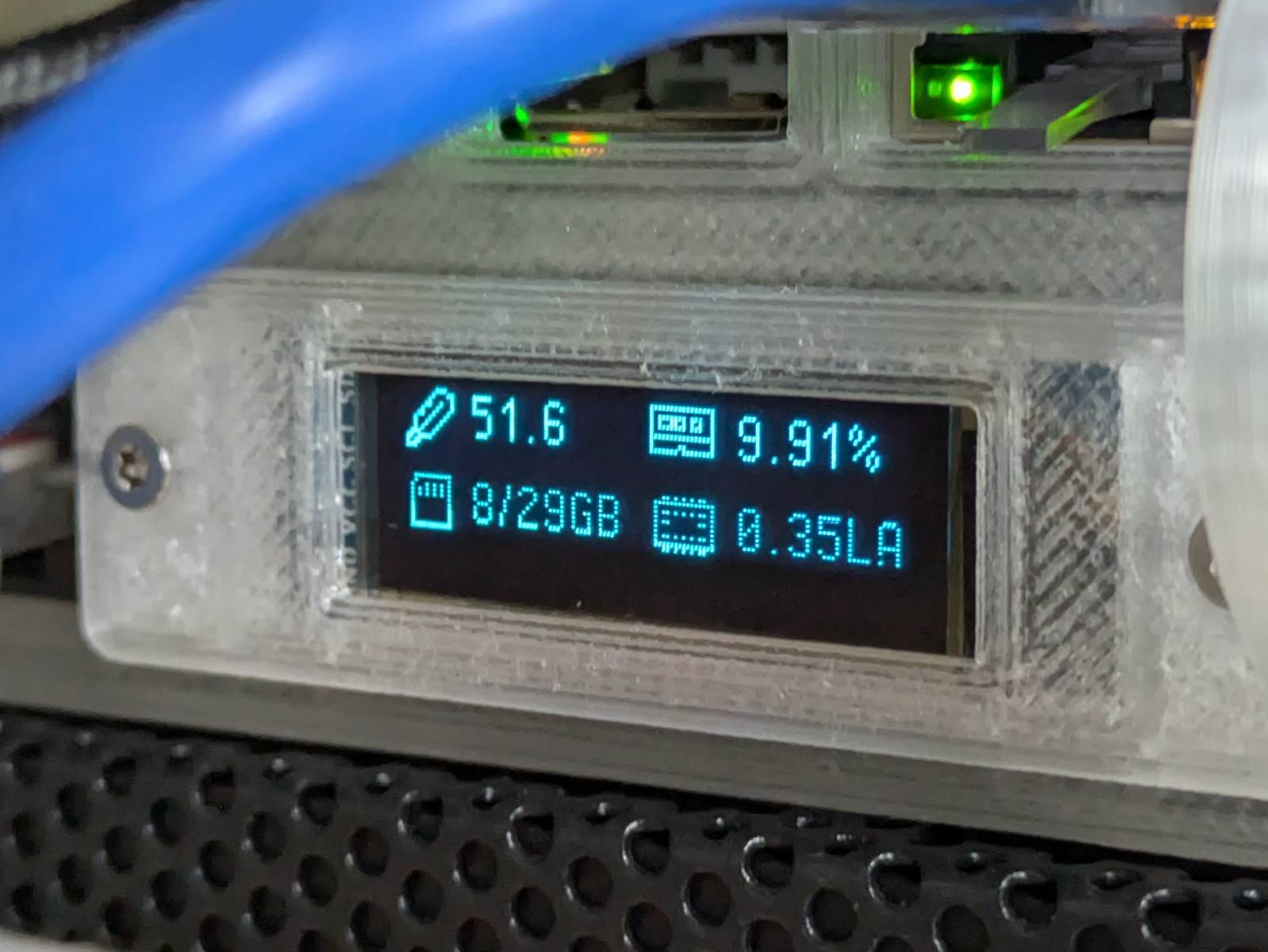

oled

Is it cursed? Slightly, but as long as it lives inside the container and not on the host itself I’m fine with it.

Memos

The next one in the list is memos, a simple service for “sticky notes” type notes. I do not yet know if I’ll use it, but I’m trying to make myself solve a problem with myself that is making notes and not remembering where I made that note. I figured, if I had a common place for all of my quick notes, then I might not be losing them.

CUPS

This, and the next one are for sharing the (paper) printer across the LAN. CUPS is a standard open source printing server for Linux. The reason I have it in the docker container is not the CUPS itself, but the hplip and other HP bs-ware™ for my DeskJet printer. The thing with hplip is that it technically is open-source, but they don’t take external contributions and some printers require proprietary plugins to work. Every time I have used it in the past, it gave me that vibe of it being held together by dreams and hopes. What I didn’t like the most is it doing god knows what to the system without asking. Therefore, containerizing it was the only logical thing to do, and I am happy to report it works without a hitch. I had to prepare a custom docker container though, but that also can be done with the compose extension web ui.

Scanservjs

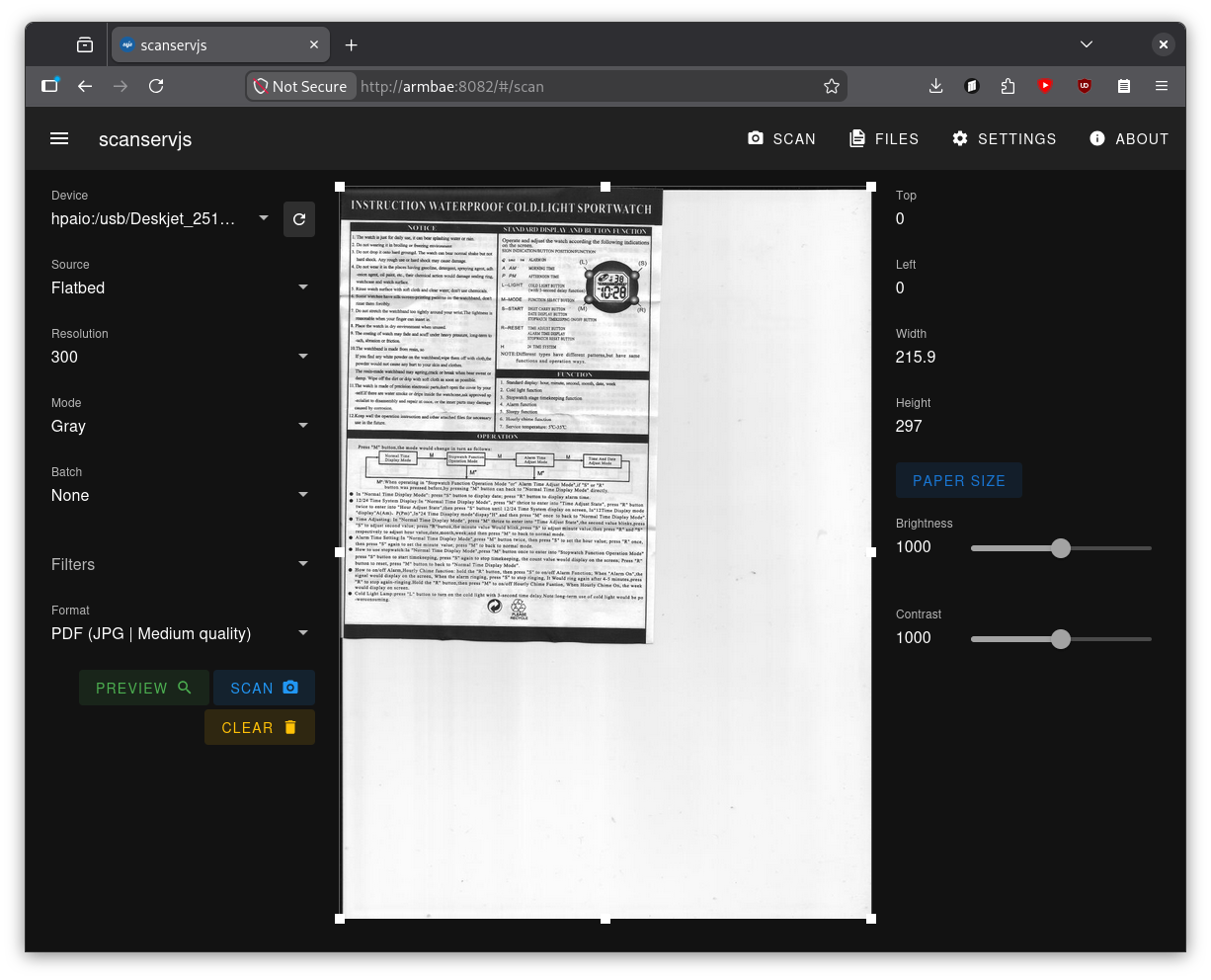

Scanservjs is a web-ui frontend for SANE, and it is the solution I’ve been using for a while now to use the scanner that’s built into my printer.

Scanservjs

Again, custom hp libraries are required, although I would have put it in a docker container even without them, as it is yet another web service.

That’s all there is to it

…and that’s all there is to it. I wasn’t lying, my “server” is bare bones, but I like it this way. With all those services running, I’m barely using ~800MB of the 8GB of available RAM. If I ever feel like I’m missing something, I’ll just deploy it. There is no point for me to forcefully deploy a bunch of stuff on it just to utilize more resources.

On that note, the next likely thing that’s coming to the arm_bae is Home Assistant as I finally need to get rid of the corporate spy in my home that is my Nest Speaker (yet another small step toward being less reliant on Google).

Yet another side note. I wanted to deploy the Pi-hole to fight against YouTube ads on TV, but sadly, the ads are coming from the same domain the videos do, so that’s a no go.

I consider the arm_bae (both the model and deployment) finished for now. This is definitely my best custom computing project yet.

I’m planning on releasing a YouTube video on this. Once it is done, I will update this post. For now, however, thanks for reading.
