It’s been a while since the last blog post, and I finally have something worth sharing. It’s not that nothing has been happening, it’s just that with the limited time I have after work, progress tends to be slow, especially with more complex stuff (a weak excuse, I know). I’ve crossed out many of the smaller tasks from my “TO DO” list, so now it’s time to tackle the bigger, more ambitious projects I’ve been procrastinating on.

…but you know how it is. Sometimes you just want to buy a GPU for your server, thinking it’s just a little escape from the list, and suddenly you find yourself reinstalling the OS from scratch and creating full automation to restore it to its previous state.

…yeah, anyway…

In this blog post, I’ll describe why I wanted to install a GPU in my server and how it went, as well as share my newfound love for Ansible, and my hatred towards configuring Samba. This post will be more relaxed than usual, so if that’s something that interests you, feel free to read on.

Meet the cube

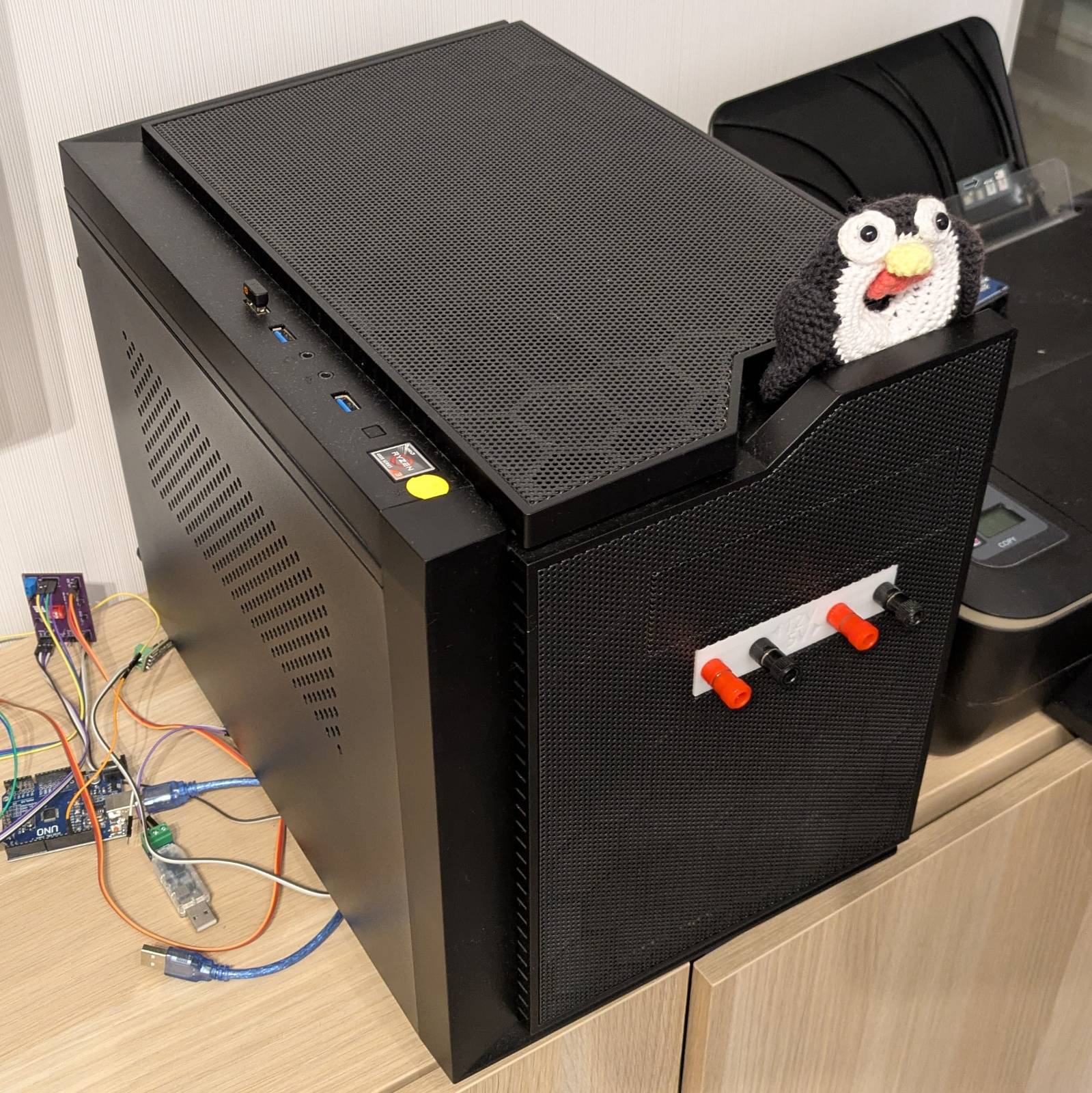

This is my “SeRvEr,” nicknamed “cube”.

I often call it my “SeRvEr,” but in reality, it’s my “throw whatever at it” Linux machine. The thing with me is, I like keeping my everyday laptop relatively clean and minimal. I don’t store any data I care about on it, I don’t run software I don’t trust (or like) on it, and I don’t host any services on it. The laptop is basically a glorified terminal for me, which is why I like having a separate device I can offload stuff to. Currently, the cube does the following:

• runs a RAID 1 array on two 3.5” HDDs where I store things I want to preserve,
• serves that array as a network share via Samba,
• serves the printer via CUPS,
• runs scanservice.js for document scanning on the printer,
• and was (or rather, used to be until recently) the only x86 machine I had, so it doubled as a VM host, e.g. for running Windows if I needed it for something a few times a year. (I’d rather burn in hell than run Windows outside a VM.)

…and, additionally, I use it to run some Linux-only software.

You might say that’s a pretty weak setup for a homelab server, and you’d be right. I rent a 40 square-meter apartment, and the cube lives right in the center of the living room, not even a meter away from my desk. Unfortunately, el cheapo hardware often means substantial fan noise, and that’s exactly the case with this machine. I only boot it up when needed; otherwise, I’d go crazy from the fan noise it produces. If I could move it to a basement, like I do with machines at my parents’, that would be a different story, but for now, it only gets powered on when in use.

Staying on the hardware topic…

Specification

Here’s the specification for the machine, along with the prices I paid, in case you’re interested.

Note: I built the PC at the end of 2023.

I aimed to build a sub 1000zł (~€235 today) PC, but once I finished assembling it, I realized I needed something to actually boot off, so I ended up going a bit over budget. All the components were bought new; some were on sale, and the CPU was a customer return, so it came with a discount.

I built this PC as I was moving out from my parents’. Originally, I wanted something like the Aoostar R1: small and compact, but I ditched that idea. It was too expensive for what it offered, non-upgradeable (future-proof), and the form factor was too limiting. …and above all, I was well aware that I’m a moron and that sooner or later I’d start doing stupid stuff to that PC, so I needed it to be as general-purpose as possible.

…and I was not wrong…

So here it is, my not-really-a-server server: the cube.

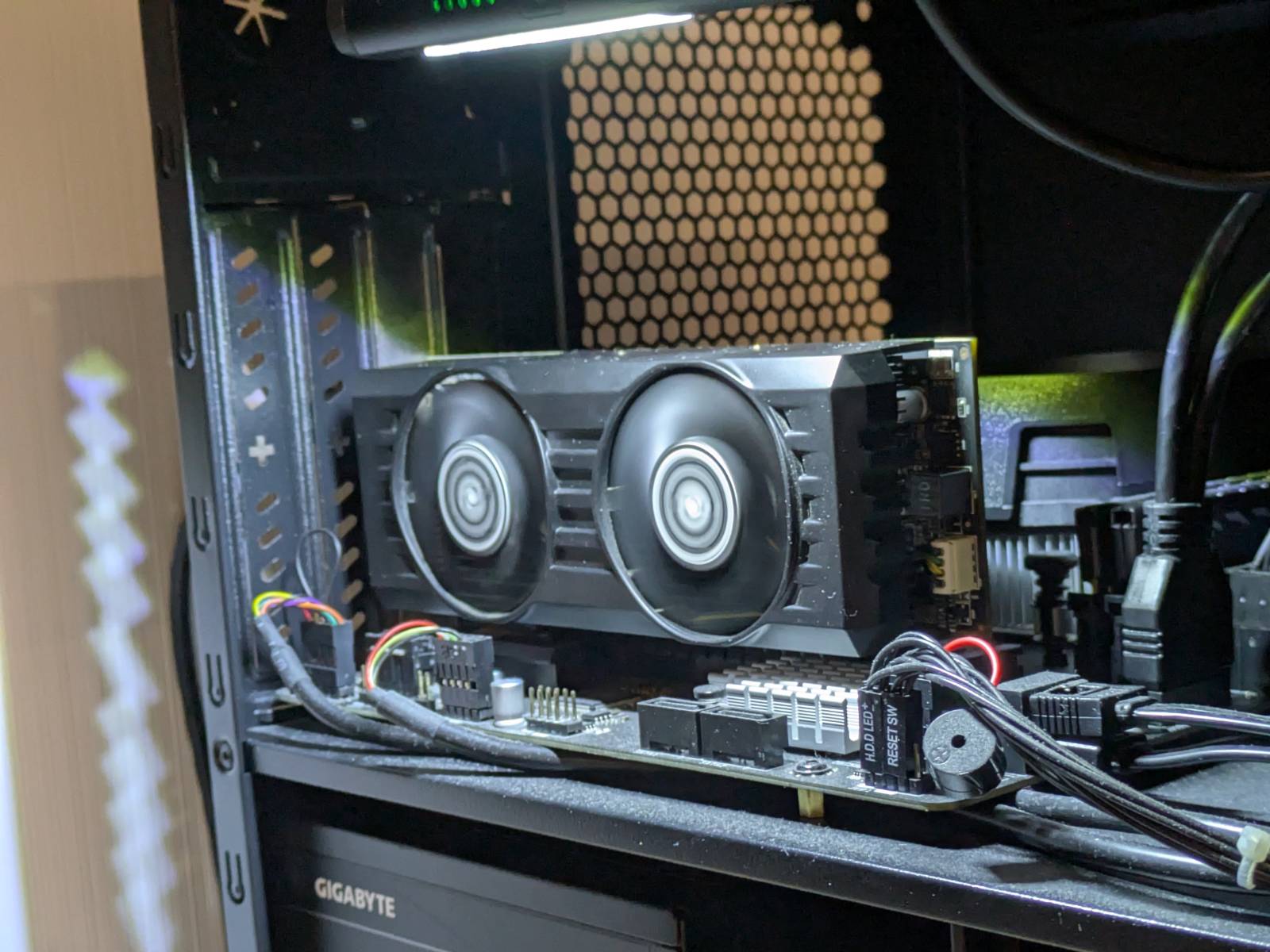

Let’s add a GPU

The Ryzen 3 4100 that powers this contraption doesn’t have integrated graphics. Turns out, they are not really necessary. I could VNC into GNOME or my VMs just fine with a few extra tweaks. The only inconvenience was that I needed to have a spare GPU lying around in case I wanted to change some settings in the BIOS or something. …so I kept an ancient Radeon HD5450 in a drawer for those occasions.

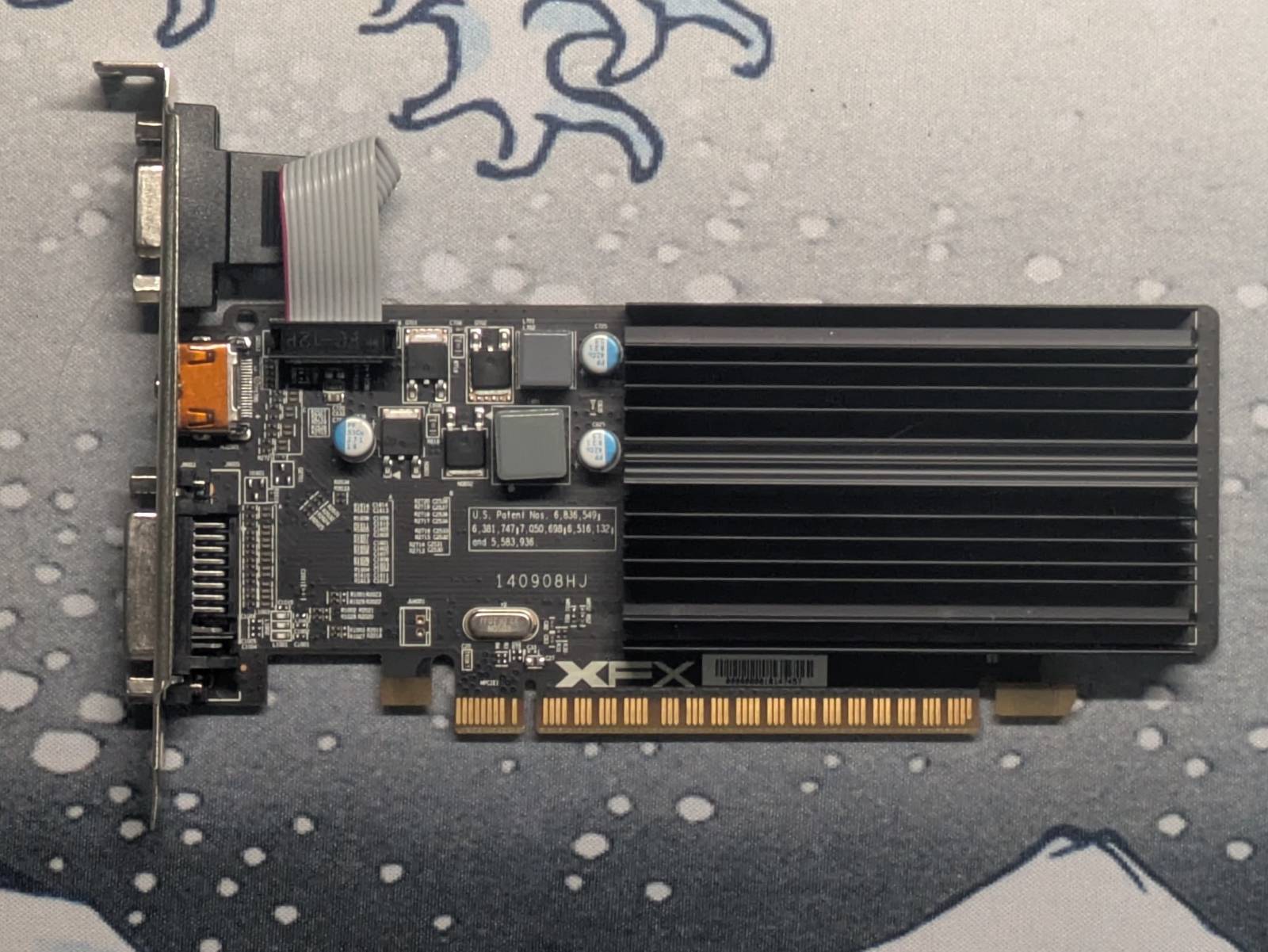

That thing was so old it was basically just a display adapter, but whenever I needed it, I’d temporarily plug it in, and it worked. …so what do I mean by “adding a GPU”?

I’m an onion

You see, I figured quite a while ago that the sound of air being pushed around inside beeping metal boxes near me is not my passion. Yet, over the years, I’ve built up a small library of games on Steam that I suddenly felt like playing again. I have an Xbox, but I’m not about to sponsor Microsoft by buying those games a second time just to play them there (not that I even could for some titles).

I figured, I already have this computer in the living room, right next to the TV, doing nothing most of the time. Why not buy an older GPU and play some games on it?

…and “it was at this moment, that he knew”.

Weapon of choice

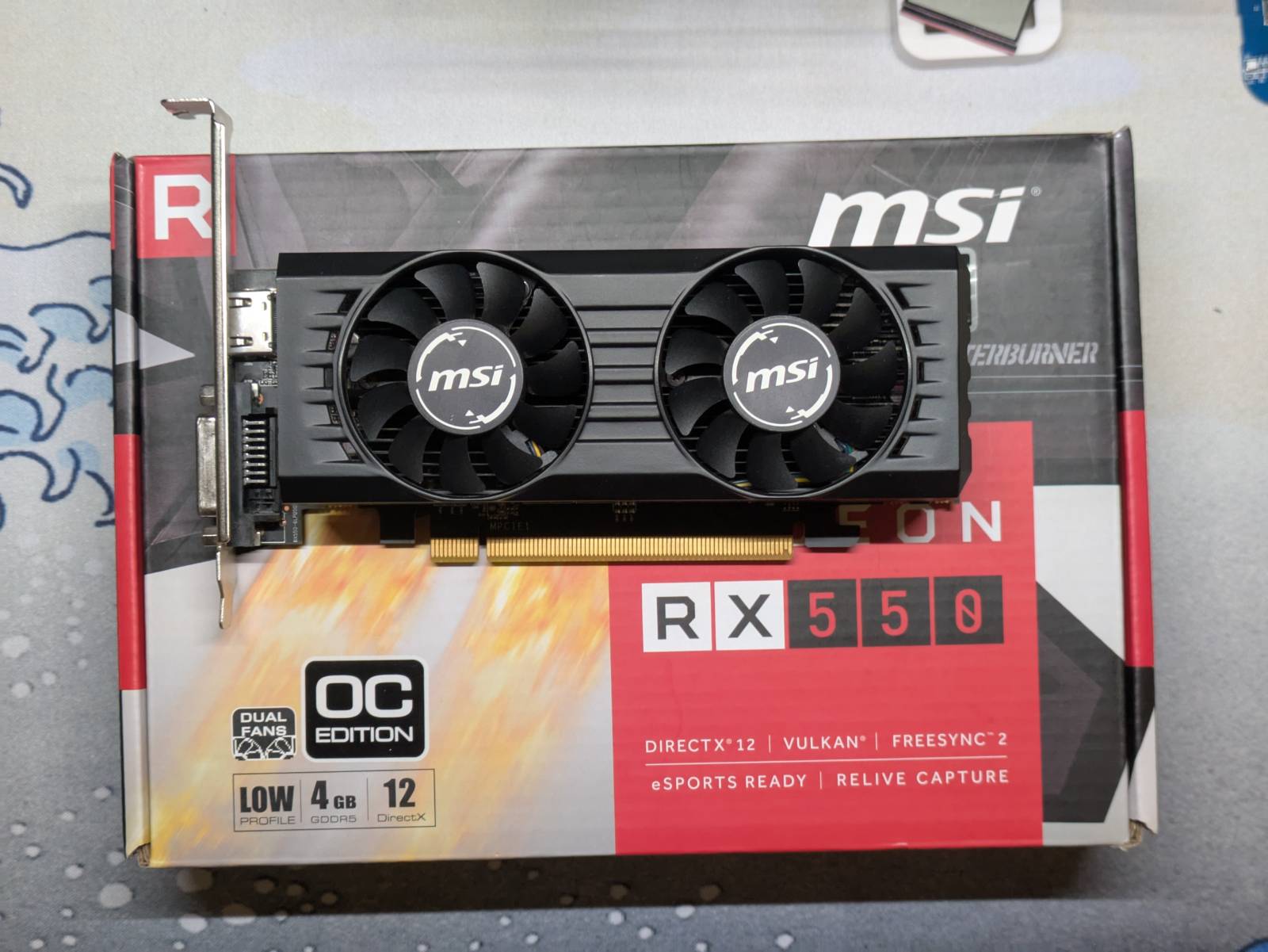

TL;DR: I sold the ancient HD5450 I had and bought a used RX550.

I knew I wanted something with the performance level of a GTX 1050 Ti, since I knew the games I own would run fine on it, but I didn’t want to deal with Nvidia driver bulls**t, so I went with Radeon instead.

The issue is, the RX550’s performance is actually closer to a GT 1030 than a GTX 1050 Ti, but this is what happens when you trust ChatGPT a bit too much. If I had known that, I’d have gone for the 2 GB version instead of the 4 GB one I ended up buying, since it’s half the price.

Thankfully (depending on how you look at it), the “landlord special” TV that came with my apartment is barely above HD resolution, so I don’t think the oldies I plan to play will be too demanding for it.

The struggle begins

So, as mentioned in the previous section, I sold the old HD5450 to morally justify buying a “new” card. …and that was my first mistake.

You see, I think either computers are secretly self-aware and all of them hate me, …or somebody has put a curse on me. The leitmotif of me and computers is that I seem to attract misfortune. All the trivial things you’d expect to work, like… I dunno… Plugging in a graphics card and expecting it to output anything… Somehow don’t work for me…

Okay, nothing serious, I thought. Probably some BIOS version issue, nothing that an update couldn’t fix.

Right… too freakin’ bad I had just sold a known-working GPU and my CPU lacks an iGPU.

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAH

TL;DR: I “borrowed” a GTX 1030 from work (I asked, don’t worry), updated the BIOS, and the RX550 magically came back to life as expected. Yet, what should have been a 15-minute job turned into a 2 day ordeal.

…but wait, there’s more

Obviously, it would be naive of me to expect the computer to just boot after a BIOS update. There were two issues.

Secure Boot dance

The first issue was Secure Boot. Being a reasonable person I am, I leave Secure Boot turned on. …too bad the proprietary BIOS doesn’t allow altering boot options in any meaningful way. I had to manually select the shim to boot off via the EFI shell, boot the OS, add a custom boot option via efibootmgr, reboot the PC, and… still nothing. The changes didn’t persist.

After some time, I finally managed to add a custom boot option (I’m not entirely sure what I did that made it stick), yet for God’s sake, I still cannot remove the default boot option, which doesn’t work with Secure Boot. My assumption is that it (BIOS) sees that path every boot and adds it automatically.

A workaround was simply changing the boot order to use my custom entry first, yet it bugs the hell out of me that I cannot remove a freakin’ boot option from my own computer.

Configs lost in space and time

I had my OS configured to run without a graphical user interface or rather, so the GUI was available only via VNC (remember, I had no GPU). It had been about two years since I set it up, so I had no idea what I did to make it work.

Sadly, when “restoring” configuration to start graphical.target by default, the session refused start to automatically, I had to manually restart the GUI server.

…though, sometimes GUI started automatically, suggesting some kind of race condition.

TL;DR: Instead of playing archaeologist, digging through what I might have done and ending up with the OS in an unknown state, I decided to yeet it all out and start fresh, but this time, properly.

Ansible

Before diving into this, I had a general idea of what Ansible is, mostly thanks to Jeff Geerling, but I had never actually used it. I knew it was a tool that could automatically set up general-purpose OSes (yes, I know NixOS exists, but I like Debian and got life, so deal with it), meaning it could deploy configurations, install packages, create users, and so on. In reality, it can do much more than that. From what I’ve learned so far, where it really shines is performing automated configurations at scale.

I’m not claiming to know everything about the tool I just discovered, so if you’re curious, here’s the Ansible GitHub page and Jeff Geerling’s playlist: Ansible 101.

My use case only scratches the surface of what Ansible can do. What I mainly wanted was:

• A “one-click” solution for setting up any of my machines.

• To know what, how, and where things are installed. The problem with general-purpose Linux distros is that everybody seems to have a different idea of where and how software should reside. Some examples:

  • Some software you install via the package managers.
  • Some you download as .deb, .rpm, or other formats.
  • Some you just grab as precompiled binaries and place them in $HOME/because/f/u/thats_why/ because developers think everyone else is stupid except them…
  • Sometimes you download AppImages and need some third-party launcher because “they” refuse to integrate with the GUI by default.
  • And finally, some you compile from scratch.

  It quickly gets out of hand, and the lack of control over it drives me nuts.

• To have all configurations (and documentation) backed up and stored in a single repository. Until now, I’ve re-setup everything manually, time to change that.

The reason I often reinstall OSes on my machines is either because they break and I don’t want to waste time figuring out why, or because things just got out of hand (like the software example above), making the machine feel “dirty” or slow.

Helpless automation

I purposefully decided not to copy any configuration before yeeting the old system, as I wanted to fully “re-understand” the configs. This way, I could not only “re-understand” why certain things were configured the way they were, but also prepare proper documentation on why.

This is the file structure I ended up with:

$ tree -L 3
.
├── README.md
├── ansible.cfg
├── bootstrap.sh
├── group_vars
│   └── all.yml
├── host_vars
│   └── cube.yml
├── inventory.yml
├── playbooks
│   ├── local_init.yml
│   └── setup_cube.yml
└── roles
    ├── cups
    │   ├── README.md
    │   ├── handlers
    │   ├── tasks
    │   └── templates
    ├── hosts
    │   ├── tasks
    │   └── templates
    ├── ohmyzsh
    │   ├── tasks
    │   └── templates
    ├── packages
    │   └── tasks
    ├── printer
    │   ├── README.md
    │   └── tasks
    ├── samba
    │   ├── README.md
    │   ├── tasks
    │   └── templates
    ├── scanservice
    │   ├── handlers
    │   └── tasks
    ├── share
    │   ├── README.md
    │   └── tasks
    ├── ssh
    │   ├── tasks
    │   └── templates
    ├── suspend_disable
    │   ├── README.md
    │   ├── handlers
    │   ├── tasks
    │   └── templates
    └── tmux
        ├── tasks
        └── templates

What you’re looking at is the minimal Ansible configuration set I needed to more or less restore the cube after a system wipe. Mostly, it’s just setting up network resources (shares, printer, scanner, hosts) and some general-purpose tweaks to make navigating the system easier. This isn’t, by any means, the final configuration. I’ll be adding more stuff as needed. The task for now was simply to restore minimal service set and not get killed by my girlfriend needing to use the printer (joke).

Some aspects I wanted to touch on..

Bootstrap script

A bootstrap (bash) script prepares the host to run Ansible. I decided to extend my bootstrap script to also handle minimal configuration of the target. Here’s what my bootstrap.sh does:

• Verifies that Ansible can run on the host; if packages are missing, they are installed.
• Launches the “local-init” playbook to ensure /etc/hosts is configured and generates missing SSH keys for both the “ansible” and default user for all hosts in the inventory.
• Copies over SSH public keys to the target for the default user.
• Gives the default user sudo access (it’s a Debian thing).
• Creates an ansible user, grants them sudo privileges, and copies over their SSH public key.
• Verifies that Ansible can run on the target.

I’m aware I may have gone a bit overboard. The whole point of Ansible is to avoid writing custom bash scripts. Yet, it’s a bit of a paradox… I already need some things configured before Ansible can do its magic. Could I have done it more “properly”? Probably. But at the same time, I believe it fits within the rule of “do just enough so that Ansible can run”.

READMEs

As you’ve seen, for some of the roles I added README.md files. These describe the reasoning behind why certain things are configured the way they are. Here’s an example for the suspend_disable role:

# Suspend Disable

This role handles disabling system suspend the way Debian manual recommends:
<https://wiki.debian.org/Suspend>

The "modern alternative" listed there is to create `/etc/systemd/sleep.conf.d/nosuspend.conf`
with the following content

```text
[Sleep]
AllowSuspend=no
AllowHibernation=no
AllowSuspendThenHibernate=no
AllowHybridSleep=no
```

This works for Debian 10 and newer.

I just like to know why I did things the way I did them.

Inventory

In my inventory file, I maintain all the machines (not exactly just computers) I manage, and I differentiate which are Ansible maintainable and which are not.

---
all:
  children:
    unmanaged:
      hosts:
        open-tany: { ansible_host: 0.0.0.0 }
        printer: { ansible_host: 0.0.0.0 }
        printer-outlet: { ansible_host: 0.0.0.0 }
        nas: { ansible_host: 0.0.0.0 }

    managed:
      children:
        x86:
          hosts:
            cube:
              ansible_host: 0.0.0.0
              ansible_user: ansible
              ansible_become: true
              ansible_ssh_private_key_file: "/<redacted>"

    local:
      hosts:
        localhost:
          ansible_connection: local
          ansible_become: true

Note: I’ve redacted hostnames and IPs.

This setup allows me to automate tasks like generating a valid /etc/hosts file, while also helping me keep track of all IP addresses for the machines I manage and ensuring consistency across different platforms.

Ah Samba…

I decided to give Samba its own section in this post just to rant about it. No joke, I spent like two evenings reconfiguring Samba to my liking, and I still feel dirty and defeated after it. Where do I even start?

Samba is this contraption that’s supposed to do it all and yet it does nothing well. It comes with this massive configuration file that you study for an hour, only to realize it’s just the tip of the iceberg. Every setting is somehow related to three others, and there are, like, a freaking trillion of them. The default manual page looks like it came straight out of TempleOS: a single page that’s 190+ “PAGES DOWN” long (and that’s only for the config file)… AND ALL THAT JUST FOR SOME SERVICE TO SHARE FILES ACROSS THE NETWORK.

Sharing printers? “Good luck”, I just defaulted to CUPS…

Samba users are not system users; they must be added manually, yet there’s no option to show shares per user. So if your system user (which you have to create anyway) doesn’t have a home directory, but you’ve got homes enabled, Samba will point to the void for the user’s home dir, making the clients crash.

Don’t even get me started on how counterintuitive some settings are named…

Ehhhhhhh…

Never again

After two evenings wasted, I finally have a Samba config that works (though I still hate it) and a full automation framework behind it. Hopefully, I’ll never have to look at it again… just deploy and forget.

Summary

So here we are… What was supposed to be a simple GPU installation turned into automating configuration deployment across my machines. Besides all the extra time I had to spend on it, it went relatively smoothly, without any major hiccups (Samba aside, of course).

I love Ansible and don’t know how I ever lived without it. Now I know how and why everything I care about is configured. If I ever need to reinstall a system for whatever reason, I’ve got an almost one-click automation setup ready to deploy. More importantly, maintaining the automation framework itself is now mostly hands-off. Other than the bootstrap script, I can ensure the tools I need are always up to date.

As for what’s next, I still need to set up my new laptop (expect a post or video on that soon) via Ansible, so more roles and playbooks will be coming. As for the cube… I think it’s finally time to install Steam and play some childhood classics 🤣.
